80mm 90mm DN200 Zoomlion Concrete Pump Parts S Valve Concrete Pump

  • 80mm 90mm DN200 Zoomlion Concrete Pump Parts S Valve Concrete Pump
  • 80mm 90mm DN200 Zoomlion Concrete Pump Parts S Valve Concrete Pump
Lugar de origen China.
Nombre de la marca SDBL
Certificación ISO
Número de modelo DN200
Cantidad de orden mínima PC 1
Precio Negociable
Detalles de empaquetado Caja de cartón
Tiempo de entrega Dentro de 7 días después del pago
Condiciones de pago Western Union, MoneyGram, T/T
Capacidad de la fuente 500 piezas por mes

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre de Producr Válvula de Zoomline S Modelo no. DN200
HRC ≥65 Vida laboral 80000cbm-100000cbm
El material Pipe16Mn soldado con autógena, eje 38 CrMoAl, #45 acero, hardf Tamaño del eje 80mm/90m m
Resaltar

Zoomlion Concrete Pump Parts 90mm

,

Zoomlion Concrete Pump Parts DN200

,

DN200 s valve concrete pump
Deja un mensaje
Descripción de producto

Zoomline Concrete Pump S Valve/Concrete Pump Truck Spare Parts S Valve/DN200 S Valve

1.Product description

Zoomline concrete pump S valve is constructed of plate, flanges and splined shafts that have been joined with welding together , the splined shaft is made of 38CrMoAI. Chrome-plated shaft sleeve are made of 45# steel ! seamless carben steel plate steel tube , the chrome layer thickness between 0.12mm-0.16mm. Different pumps use different sizes S valve, also the Concrete Pump Wear Plate and cutting ring ! Our S tube service life is ≥60000cbm. one set agitaing systemn including concrete pump S valve , concrete pump wear plate and wear ring, concrete pump delivery cylinder and so on ! The whole set we can supply for you !

Product name Zoomline S valve
Model No. DN200
Material Welded pipe16Mn, shaft 38 CrMoAl, #45 steel, hardf
HRC ≥65
Working life 80000cbm-100000cbm
Usage Used on the hopper assembly
Type Small mouth and big mouth
Shaft size 80mm/90mm
Other brand S valve Sany/zoomline/schwing/IHI



2.S valve introduce

The s valve is a key component of the concrete pump. It is located in the hopper to connect the conveying cylinder and the conveying pipe to coordinate the action of each component, so it directly affects the performance of the concrete pump and also directly affects the overall design of the concrete pump. The pipe body of the S pipe valve has two forms: variable diameter and constant diameter. Its characteristics can rely on the pressure of the concrete to push the cutting ring to automatically seal the nozzle. The sealing performance is good, so that the concrete pump has a strong delivery capacity, and the flow channel is smooth and not easy to block.

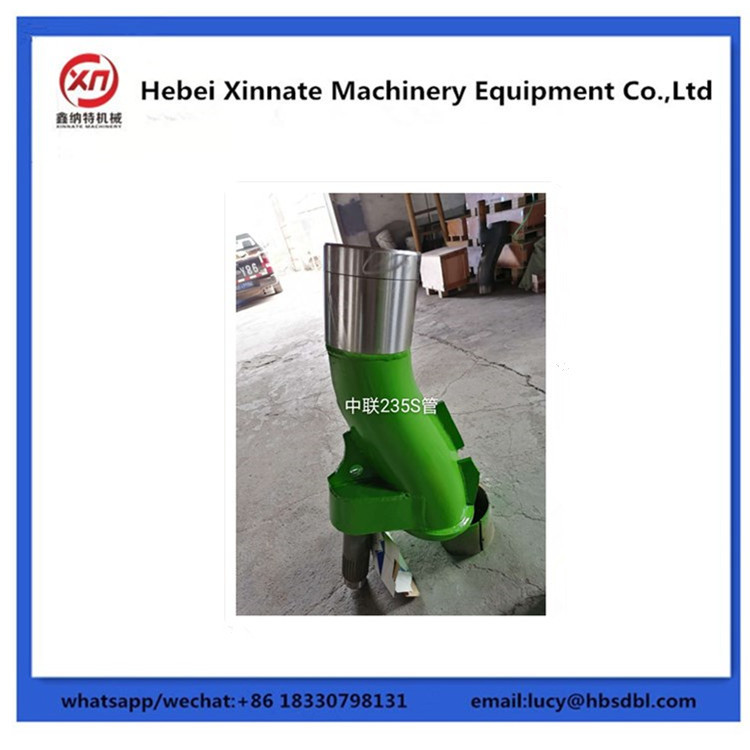

80mm 90mm DN200 Zoomlion Concrete Pump Parts S Valve Concrete Pump 0

3.S valve performance

(1)Good material, strong and durable

(2)Stable quality, not afraid of impact

(3)Safe and reliable, easy to operate

(4)Super wear-resistant, long service life



4.Other concrete wear parts

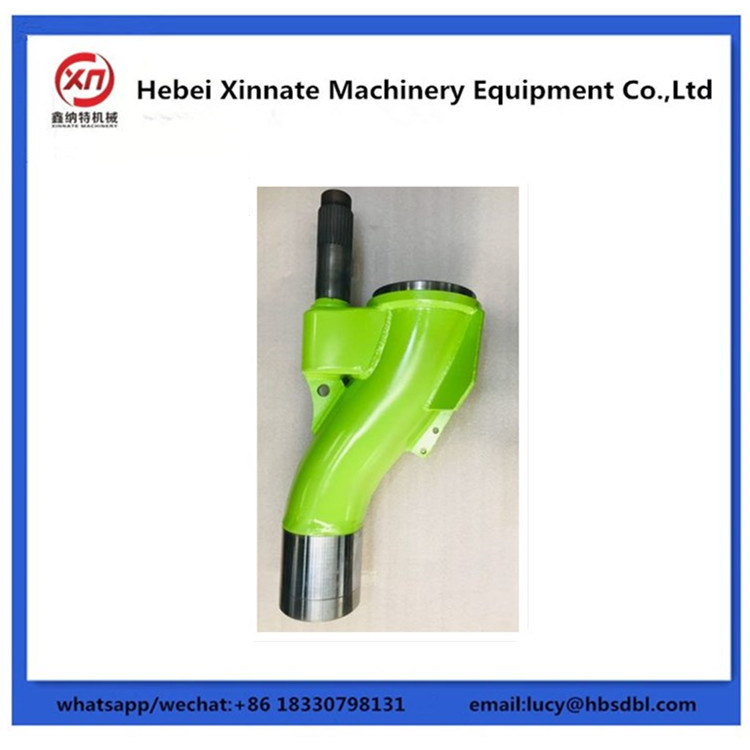

80mm 90mm DN200 Zoomlion Concrete Pump Parts S Valve Concrete Pump 1

you are welcome to inquire.
