DN230 Putzmeister Concrete Pump Wear Plate Wear Ring DN180-DN260

  • DN230 Putzmeister Concrete Pump Wear Plate Wear Ring DN180-DN260
  • DN230 Putzmeister Concrete Pump Wear Plate Wear Ring DN180-DN260
Lugar de origen China.
Nombre de la marca SDBL
Certificación ISO
Número de modelo DN230
Cantidad de orden mínima PC 1
Precio Negociable
Detalles de empaquetado Caja de cartón
Tiempo de entrega Dentro de 7 días después del pago
Condiciones de pago Western Union, MoneyGram, T/T
Capacidad de la fuente 500 piezas por mes

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre del producto Putzmeister lleva el anillo del desgaste de la placa Modelo no. DN230
tamaño DN180-DN260 El material Aleación dura del tungsteno/revestido en duro
Dureza ≥86 Vida laboral 30000cbm-80000cbm
Resaltar

DN230 Concrete Pump Wear Plate

,

DN180 Concrete Pump Wear Plate

,

229488005
Deja un mensaje
Descripción de producto

Concrete Pump Putzmeister Wear Plate Wear Ring/Putzmeister Wear Parts/Spectacle Plate Cutting Ring

1.Product description

(1)Working surface with high anti-wear materials to hardface the wear plate and wear ring.

(2)Professional and advance brazing techniques for the tungsten carbide to improve a high wear resistance and impact toughness.

(3)Quality guarantee: spectacle wear plate 30,000 cbm for the normal carbide and 60,000-80,000 for the full carbide under standard pumping situations and materials.

Product name Putzmeister wear plate wear ring
Model No. DN230
Size DN180-DN260
Material Tungsten hard alloy/hardfaced
Hardness ≥86
Working life 30000cbm-80000cbm
Tensile strength ≥2500N/mm2
Color Green/yellow or as client's enquiry
Application Concrete mobile pump



2.Different sizes of concrete pump wear plate and wear ring




Name Specification Material Applicable brand
Wear plate φ200 Tungstencarbidealloy HBT60/HBT80/HBT90concrete pump
Wear plate φ230 Concrete pump truck
Wear plate φ260 Concrete pump truck
Wear plate φ230 Concrete pump truck
Wear plate φ200 HBT60/HBT80/HBT90concrete pump
Wear plate φ260 Concrete pump truck
Cutting ring S60-φ200
Cutting ring φ230-s Concrete pump truck
Cutting ring φ260-s Concrete pump truck
Cutting ring φ230-Z Concrete pump truck
Cutting ring φ200-Z HBT60/HBT80/HBT90concrete pump
Cutting ring φ260-Z Concrete pump truck
Wear plate PM
Cutting ring PM



3.We owned not only putzmeister wear plate and wea ring , also have schwing ,zoomline , sany , cifa , sermac and so on parts brands speculated wear plate and wear ring.

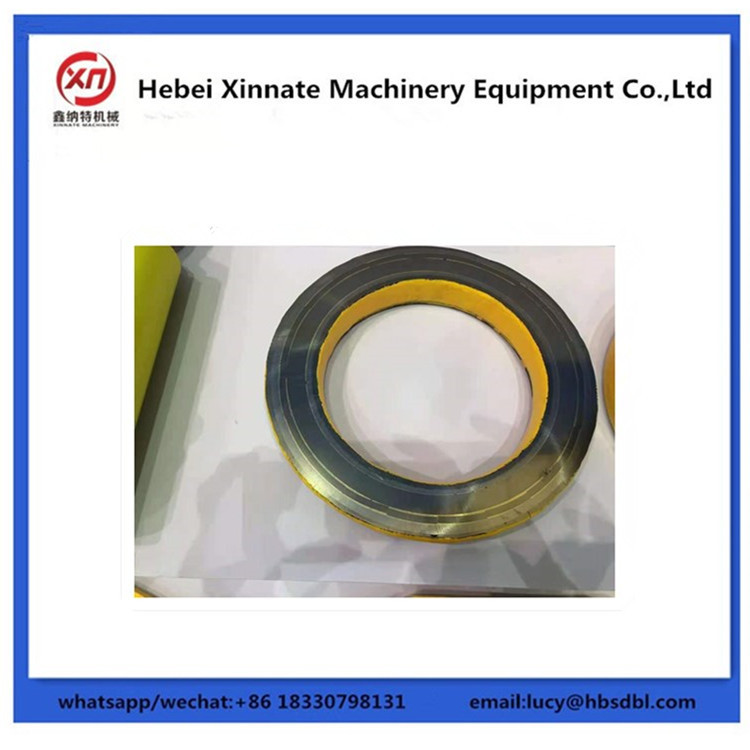

DN230 Putzmeister Concrete Pump Wear Plate Wear Ring DN180-DN260 0

4.Accessories in the warehouse

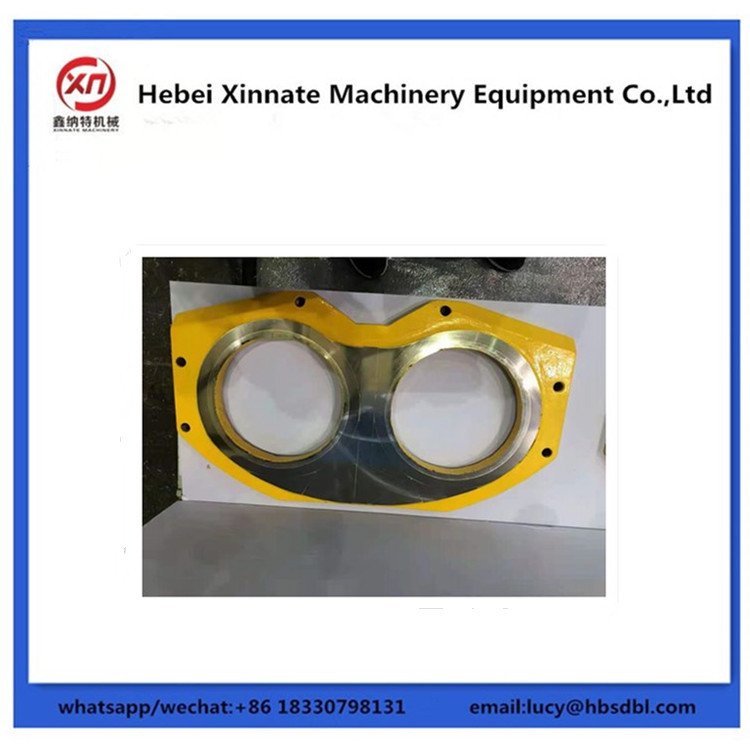

DN230 Putzmeister Concrete Pump Wear Plate Wear Ring DN180-DN260 1

welcome to purchase!
