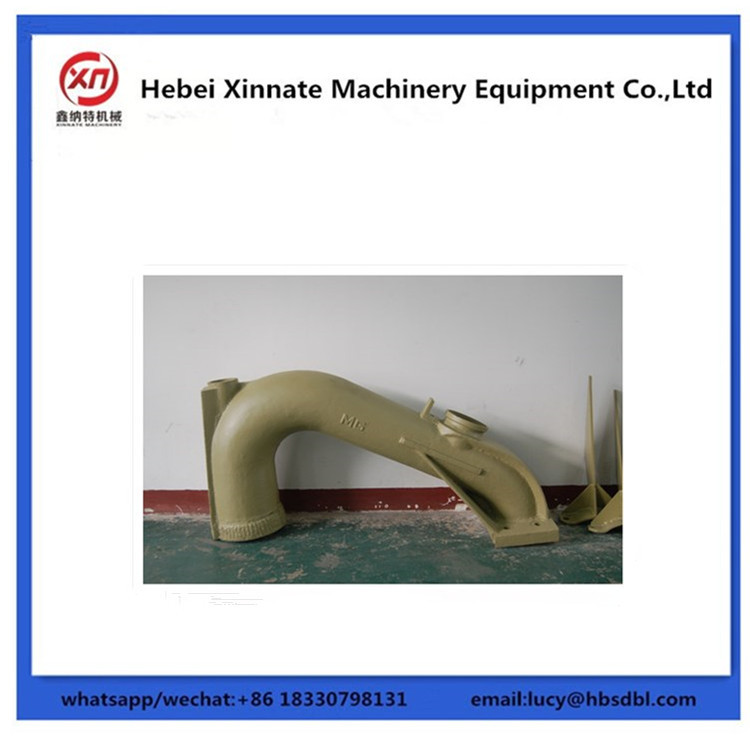

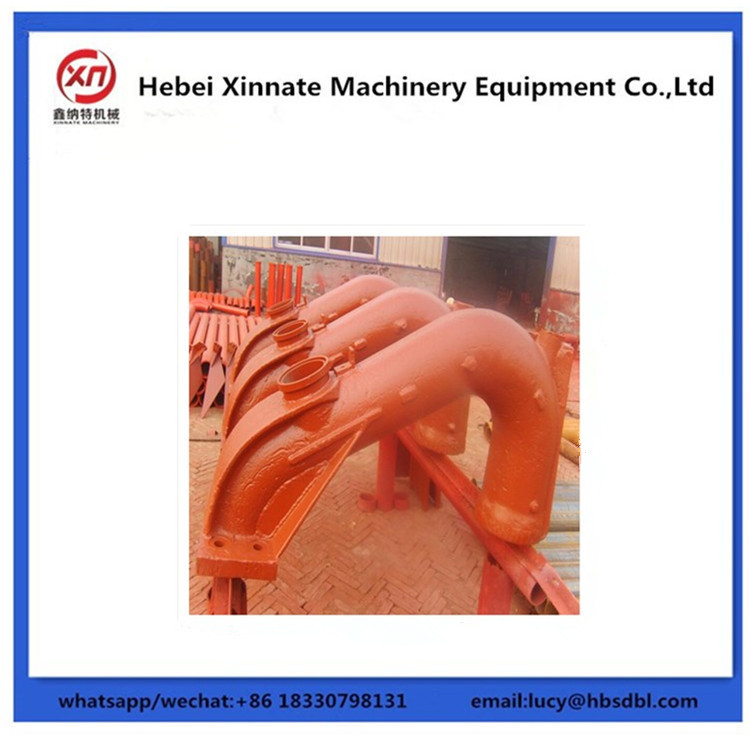

DN125 Putzmeister Concrete Pump Parts C Valve Casting Steel

  • DN125 Putzmeister Concrete Pump Parts C Valve Casting Steel
  • DN125 Putzmeister Concrete Pump Parts C Valve Casting Steel
Lugar de origen China.
Nombre de la marca SDBL
Certificación ISO
Número de modelo DN125
Cantidad de orden mínima PC 1
Precio Negociable
Detalles de empaquetado Caja de cartón
Tiempo de entrega Dentro de 7 días después del pago
Condiciones de pago Western Union, MoneyGram, T/T
Capacidad de la fuente 500 piezas por mes

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre del producto Válvula de Putzmeister C Modelo no. DN125
Tecnología Acero de lanzamiento El material acero 20#
Superficie del tubo Chorreo de arena Aplicación Tubo de la bomba concreta
Resaltar

DN125 Putzmeister Concrete Pump Parts

,

Putzmeister Concrete Pump Parts C Valve

,

Casting Steel concrete pump accessories
Deja un mensaje
Descripción de producto

Concrete Pump Parts C Valve/Putzmeister C Valve/Wear Sparts C Valve

1.Product description

There is one of putzmeister concrete pump C valve, which is used on the concrete truck pump. Size is DN125, material is 20#,45Mn, and so on material.The utility model relates to a vertical tubular distributing valve. Its working principle is the same as the S - shaped pipe valve, but the discharge end is vertically arranged and the valve tube is C shaped. As the pipe valve swings in the horizontal surface, the interface with the Delivery Cylinder should be made into a circular arc surface. The C shaped valve is arranged in the hopper, and one end is connected with the concrete pump outlet 1, and the other end is swung back and forth under the action of the two hydraulic cylinders and the 6 piston rods, which are respectively communicated with the two conveying cylinders 5 to realize the process of material suction and discharging.

Producr name Putzmeister C valve
Model No. DN125
Material 20# Steel
Technology Casting steel
Pipe surface Sandblasting
Application Concrete pump pipe



2.We can also provide other accessories related to C valve, such as C valve cover plate, C valve plug connecting rod, C valve stirring short shaft, C valve stirring blade, C valve swing cylinder seal and other accessories.

DN125 Putzmeister Concrete Pump Parts C Valve Casting Steel 0

3.Putzmeister another wear parts

DN125 Putzmeister Concrete Pump Parts C Valve Casting Steel 1

4.Other wear parts in stock are available for your choice

DN125 Putzmeister Concrete Pump Parts C Valve Casting Steel 2
